24 V DC supply network connection (X03)

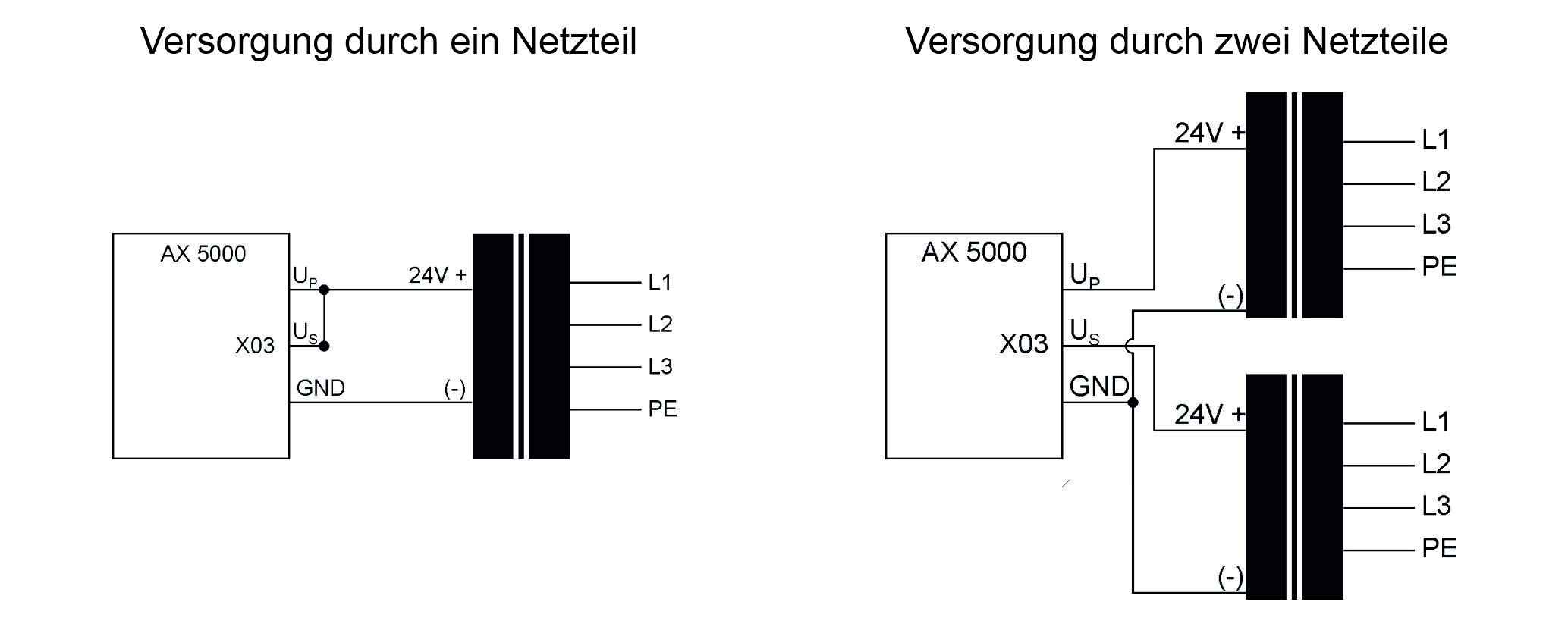

The 24 V DC connection "X03" is used for supplying the control electronics and periphery with DC voltage. The control electronics and the periphery can be supplied separately with two different voltage sources.
Note | If one power supply unit is used for the 24 V DC power supply, the connections US and UP must be bridged, in order to ensure that both the control electronics and the periphery are supplied. |
