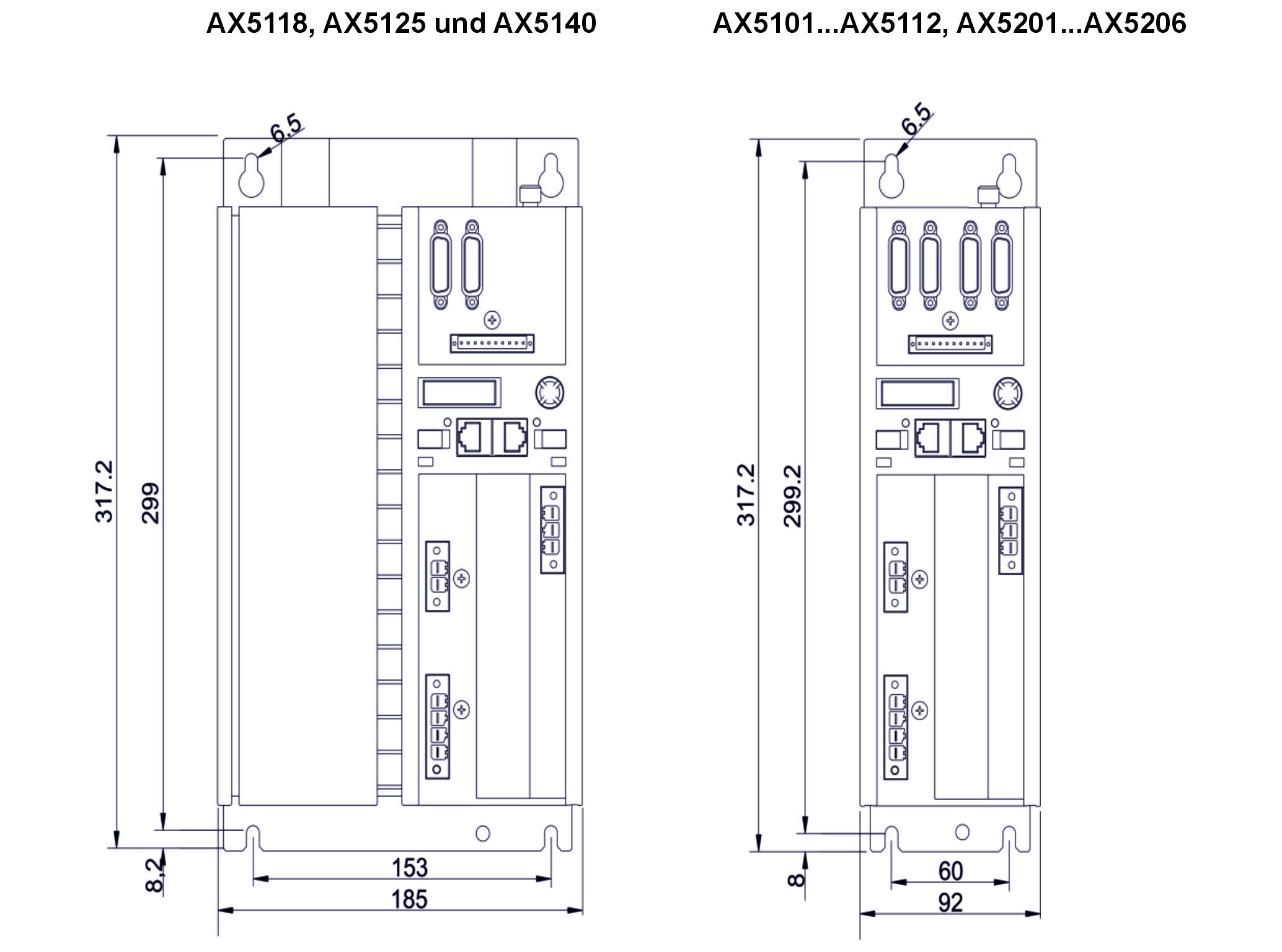

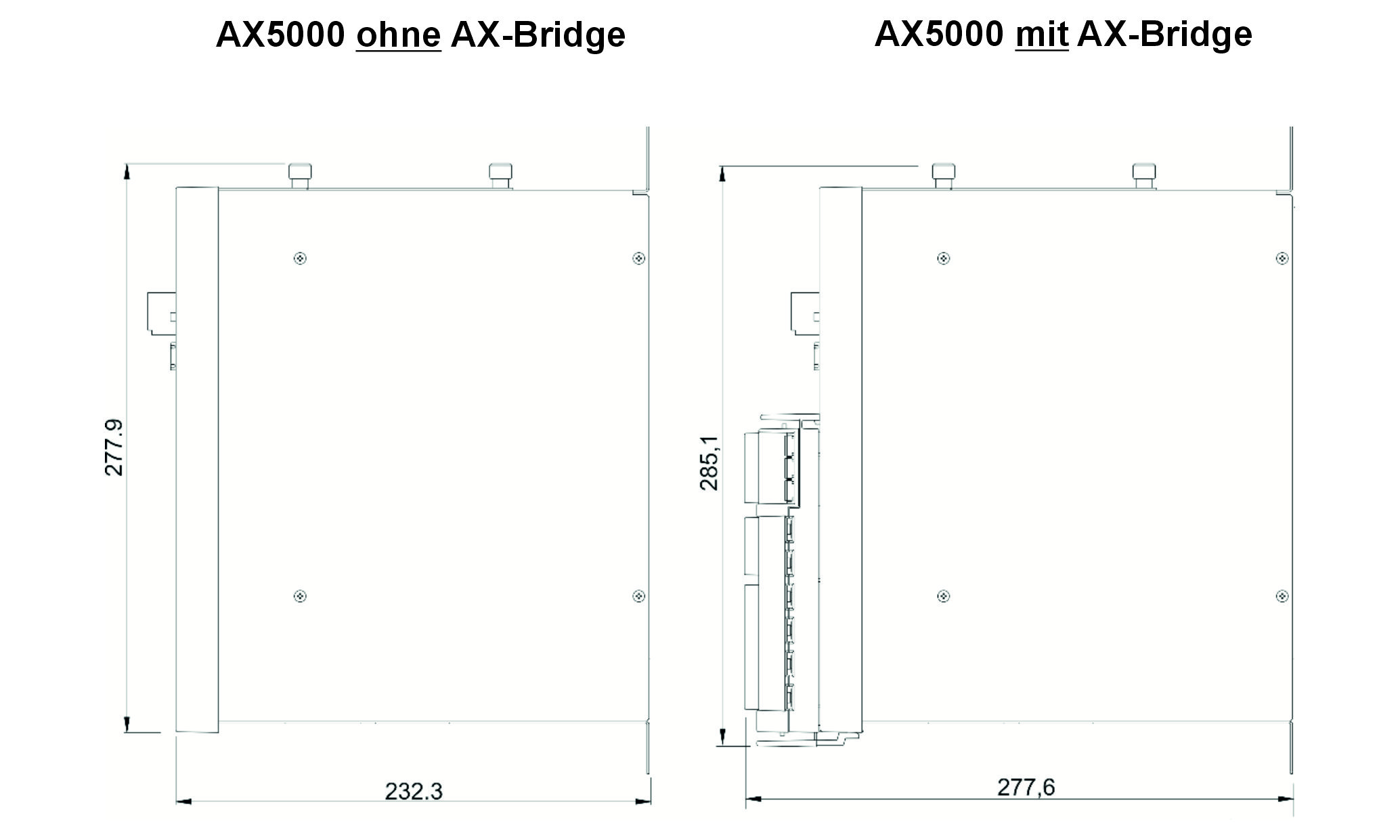

Dimensions

The specified dimensions refer to the device itself, excluding any connectors or cables. The installation dimensions for control cabinet installation can be found in chapter "Mechanical installation → Installation examples".

All figures in millimeters
