X14/X24 - motor brake, thermal protection, OCT

AX51xx and AX52xx

X14 = channel A, X24 = channel B

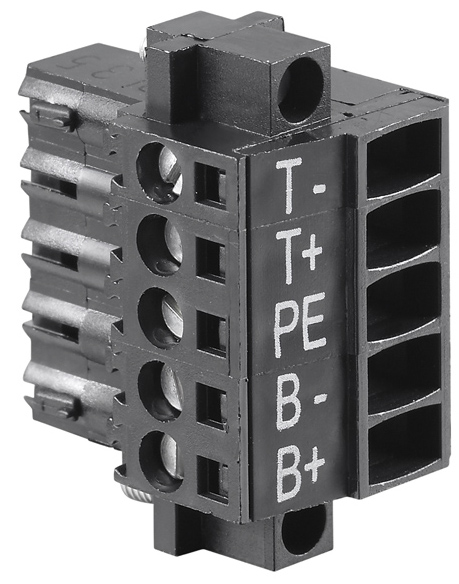

X14/X24 - motor brake, thermal protection, OCT 1:

Pin assignment for AX5000-xxxx-0000 (hardware 1)

Terminal point

Connection

Output current

Conductor cross-section

Tightening torque

T-

Temp. - 1)



0.2…1.5 mm²

0.2…0.25 Nm

T+

Temp. + 1)



PE

Signal pair shield



B-

Brake (GND)



B+

Brake (Up) +

max. 1.5 A

1) switch, KTY 83-1xx or KTY 84-1xx

Pin assignment for AX5000-xxxx-0200 (hardware 2)

Terminal point

Connection

Output current

Conductor cross-section

Tightening torque

T-

OCT – and temperature



0.2…1.5 mm²

0.2…0.25 Nm

T+

OCT + and temperature



PE

Signal pair shield



B-

Brake (GND)



B+

Brake (Up) +

max. 2.2 A

X14/X24 - motor brake, thermal protection, OCT 2:

Output current

The specified output currents are maximum values. The actual values depend on your current configuration.
