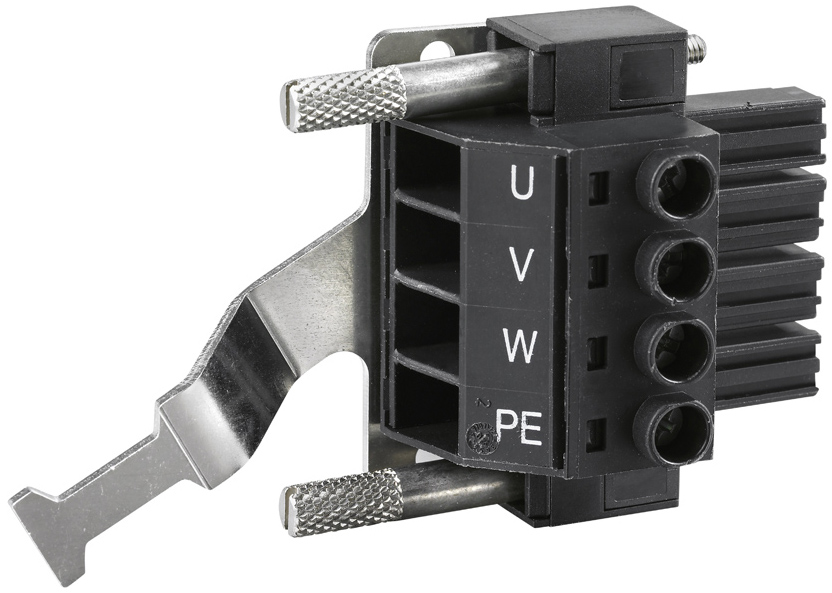

X13/X23 - motor connection (power)

AX5101…AX5125 and AX520x

X13 = channel A, X23 = channel B

X13/X23 - motor connection (power) 1:

Terminal point

Connection

Tightening torque

(knurled screws)

U

Motor connection U

0.6 Nm

V

Motor connection V

W

Motor connection W

PE

Protective conductor

Shielding bracket

Shield
