Requirements

Use the TwinCAT 3 Drive Manager 2 All work steps in this document are related to the use of the TE5950 | TwinCat 3 Drive Manager 2.

This guide assumes that a TwinCAT project and a Drive Manager project already exist for the drive. It describes the parameters that have to be entered for the operation of a third-party motor and what they mean.

In order to be able to configure the AX5000 with the Drive Manager, it must have a firmware version ≥ 2.10.

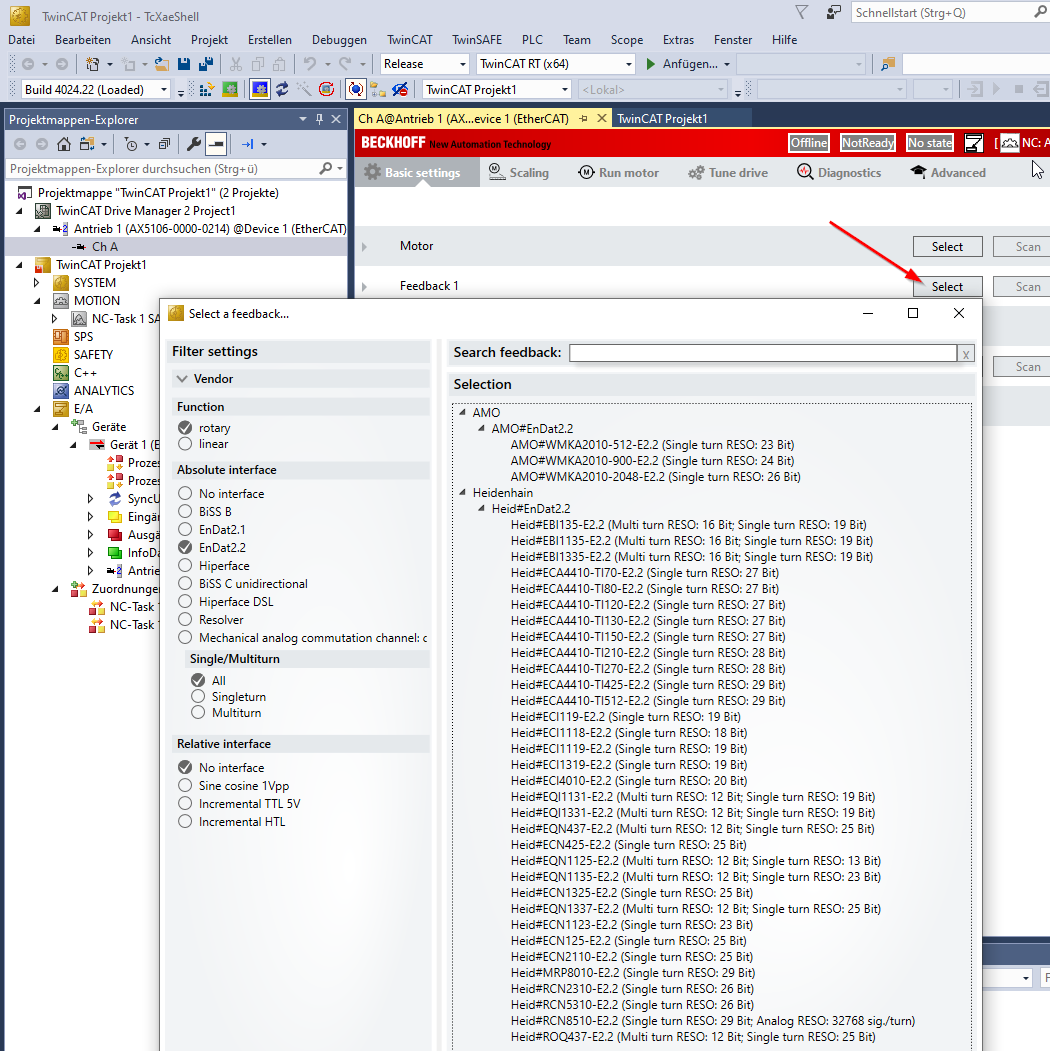

The motor feedback must be supported by the AX5000. You can obtain information on this in the AX5000 system manual and see a list of the feedbacks in the Drive Manager:
