EL7062 stepper motor terminal

Encoder cable ZK4000-8200-2xxx to EtherCAT Terminal EL7062

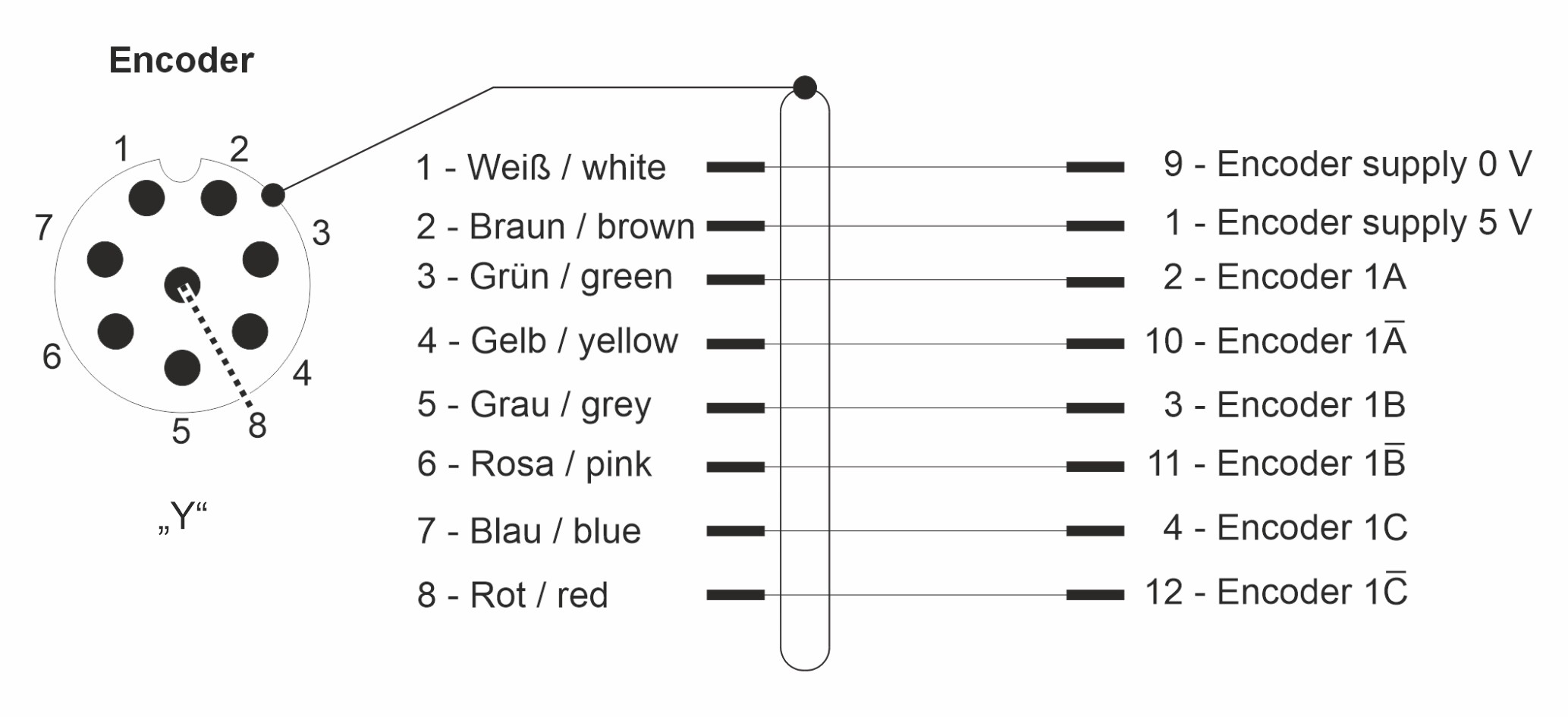

EL7062 stepper motor terminal 1:

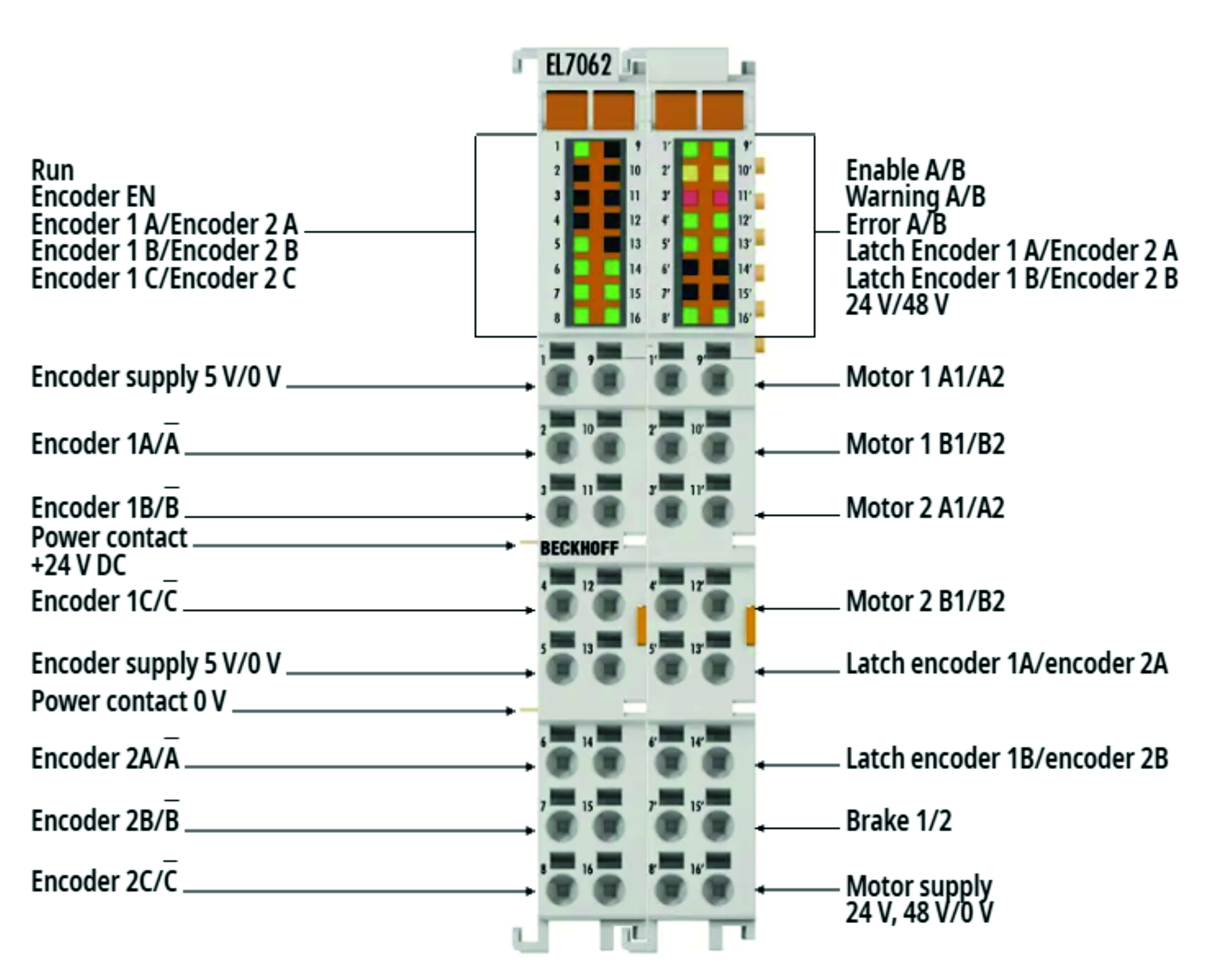

Pin assignment EtherCAT Terminal EL7062

EL7062 stepper motor terminal 2:

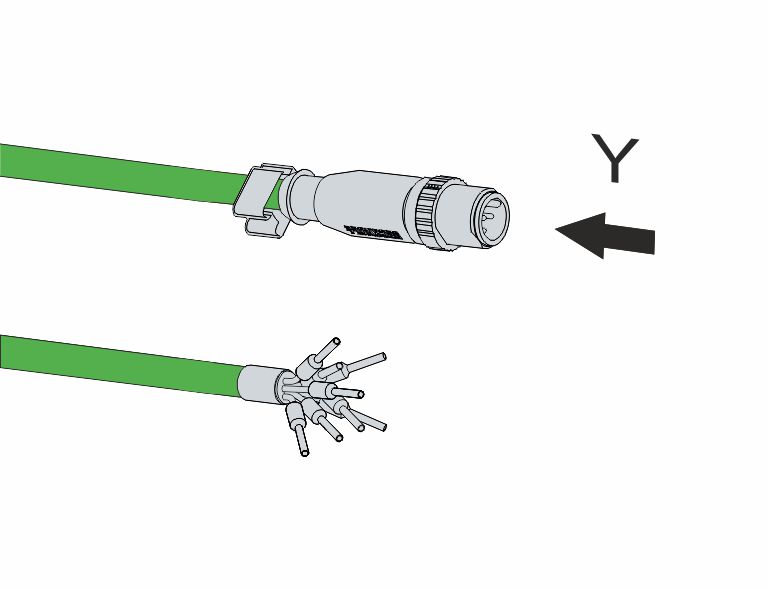

EL7062 stepper motor terminal 3:

Encoder cable

Order key: ZK4000-8200-2xxx
Preassembled at both ends and shielded: 4 x 2 x 0.25 mm²
