Art-Net Send / Receive in Broadcast mode

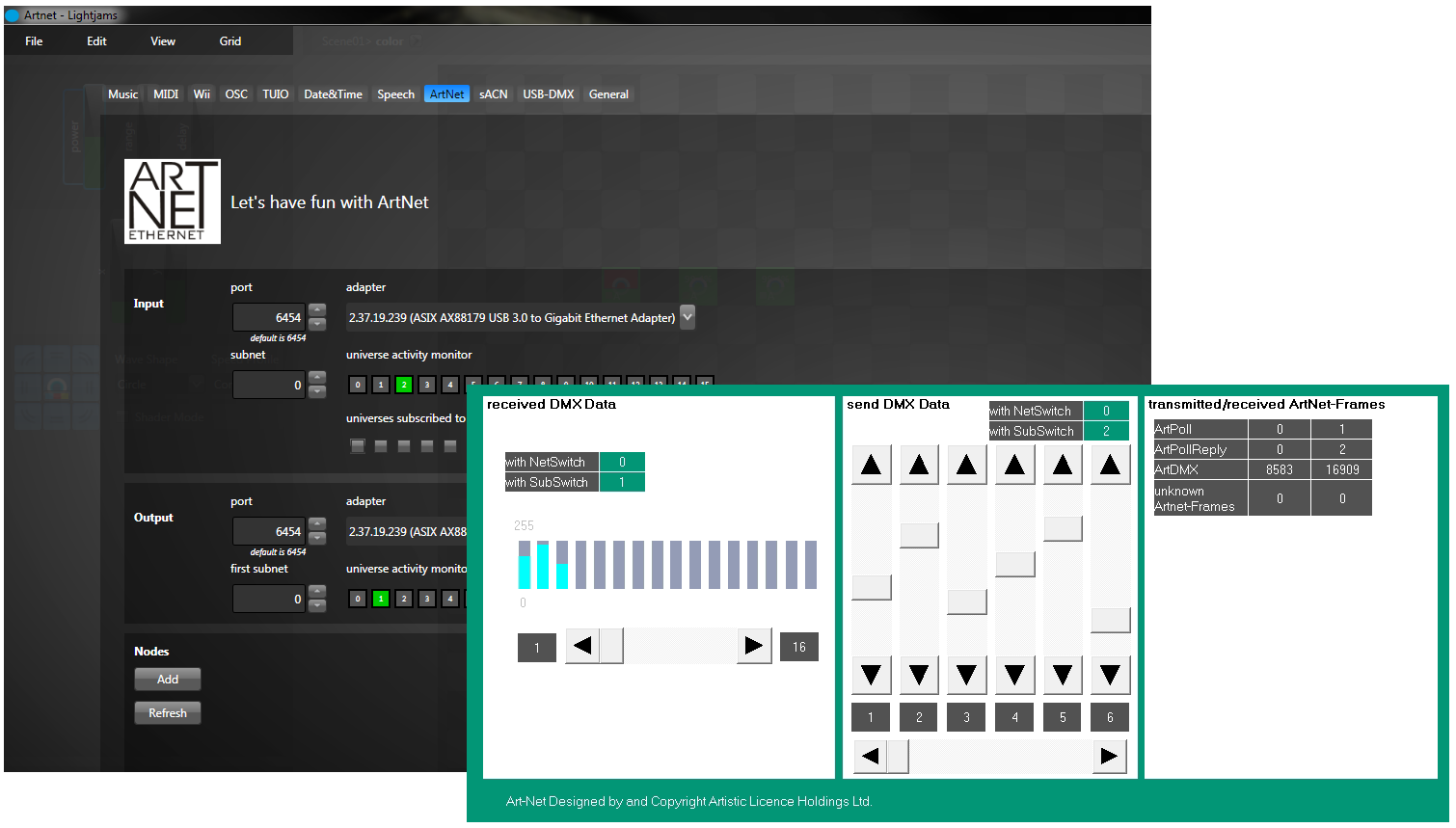

The example consists of a PLC program and a Lightjams project file.
Data are sent and received in Broadcast mode to/from a computer, on which the Lightjams project is executed.
The individual function blocks of the example are explained in the "Programming" section.
The TwinCAT supplement TwinCAT TCP/IP Server is required for the example.
Based on this example, the user data of the Art-Net™ frame can be linked with any PLC variables. Links enabled by the modular Beckhoff control system include
- ▪
- Art-Net™ to DMX (EL6851 and EL6851-0010)
- ▪
- Art-Net™ to DALI (KL6811)
- ▪
- Art-Net™ to stepper or DC motor
- ▪
- Art-Net™ to digital IOs (e.g. 24V or 230V)
- ▪
- Art-Net™ to analog IOs (e.g. 0-10V or 4-20mA).
