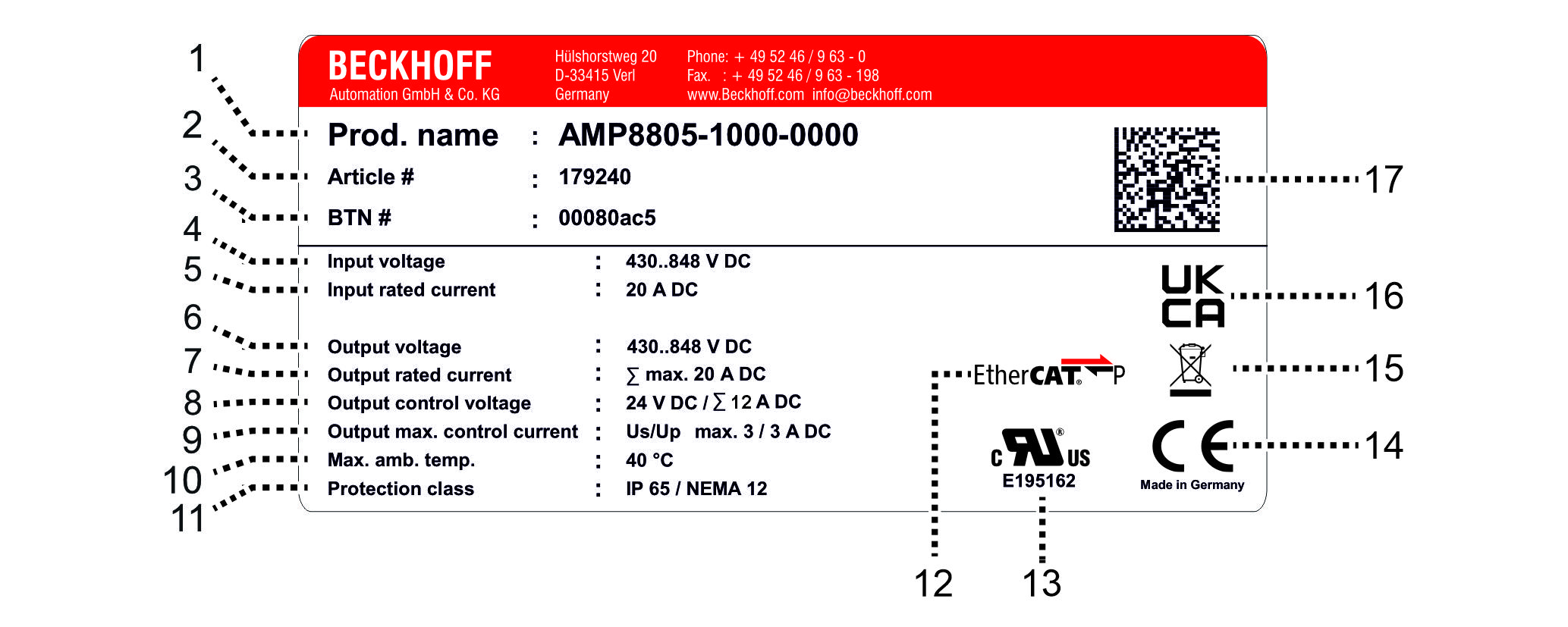

Name plate
Item number | Explanation |
|---|---|
1 | Product name |
2 | Order number |
3 | Beckhoff Traceability Number; BTN |
4 | Input voltage |
5 | Nominal input current |
6 | Nominal output voltage |
7 | Nominal output current |
8 | Output control voltage |
9 | Maximum output control current |
10 | Maximum ambient temperature |
11 | Protection rating |
12 | cURus approval |
13 | CE conformity |
14 | Disposal according to WEEE directive |
15 | EtherCAT logo |
16 | EAC approval |
17 | DataMatrix code |
