Connection examples

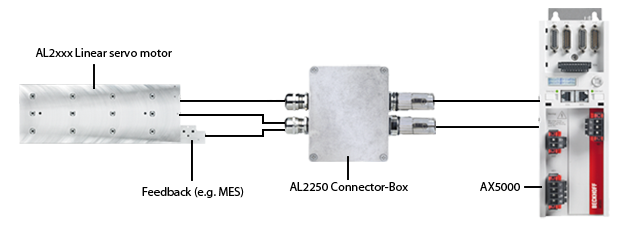

Linear motors with Beckhoff encoder (MES) and connector box AL225x
AL2250-000x
Cable | AX2000 | AX2500 | AX5000 | AX8000 |
|---|---|---|---|---|
Motor cable* | ZK4000-2111 | ZK4000-2711 | ZK4500-0023 | ZK4800-8023 |
Encoder cable for MES or absolute encoder | ZK4000-2610 | ZK4000-2610 | ZK4510-0020 | --- |
Encoder cable for EnDat 2.2 | --- | --- | --- | ZK4810-8020 |
Encoder cable for encoder with zero pulse | ZK4000-2610 | ZK4000-2610 | ZK4520-0020 | --- |
AL2255-0001
Cable | AX5000 |
|---|---|
Motor cable* | ZK4500-0023 |
Encoder cable for MES or absolute encoder | ZK4510-0020 |
Encoder cable for encoder with zero pulse | ZK4520-0020 |
AL2256-0001
Cable | AX5000 |
|---|---|
Motor cable* | ZK4500-0017 |
Encoder cable for MES or absolute encoder | ZK4510-0020 |
Encoder cable for encoder with zero pulse | ZK4520-0020 |
Linear motors with Beckhoff encoder (MES) without connector box
Cable | AX2000 | AX2500 | AX5000 |
|---|---|---|---|
Motor cable* | ZK4000-2111 | ZK4000-2711 | ZK4500-0023 |
Thermal protection contact cable | ZK4000-2510 | ZK4000-2510 | ZK4540-0020 |
Encoder cable for MES or absolute encoder | ZK4000-2610 | ZK4000-2610 | ZK4510-0020 |
*wire cross-section depends on motor/applications current
