AX5000 connection diagram with MES and Sin/Cos encoder without zero pulse

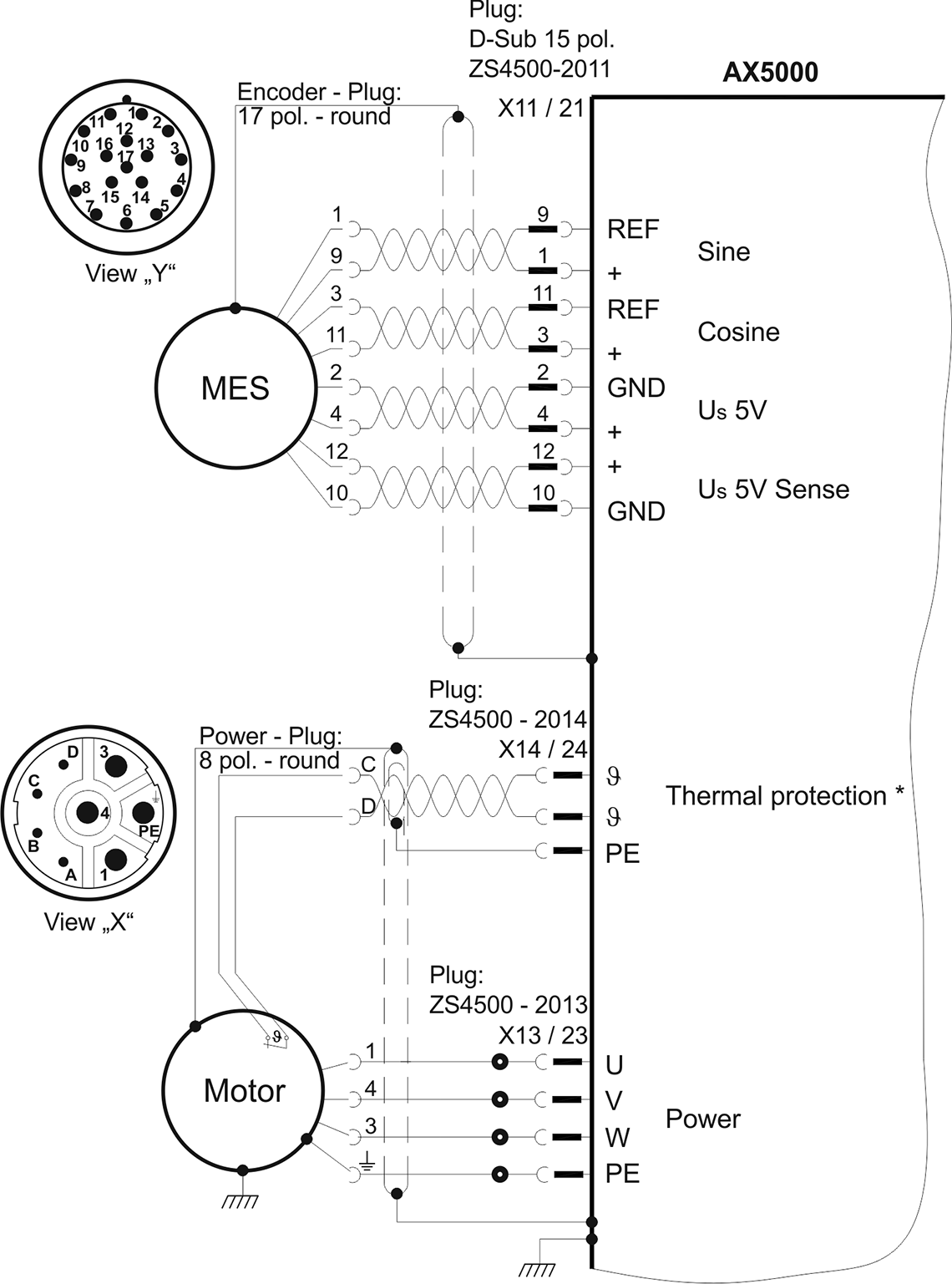

AX5000 connection diagram with MES and Sin/Cos encoder without zero pulse 1:

* If no ConnectorBox is used, the ZK4540-0020-xxxx thermal protection contact cable is additionally required. This is to be connected to X14 / 24.

AX5000 connection diagram with MES and Sin/Cos encoder without zero pulse 2:

AX5000 connection diagram with MES and Sin/Cos encoder without zero pulse 3:
