Inserting the locating pins

CAUTION

The linear motor can be damaged by unwanted movements of the carriage!

If the carriage is already mounted, move it to one end of the track and secure it to prevent unwanted movements.

Inserting the locating pins 1:

Dimensioning the locating pins:

The locating pins may not extend any more than 3.3 mm above the machine bed.

Inserting the locating pins in the magnetic plate

Assembling the magnetic plate

Inserting the locating pins 2:

Inserting the locating pins 3:

Proceed as follows:

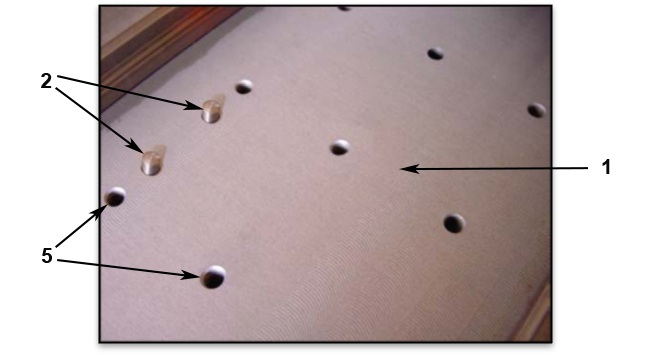

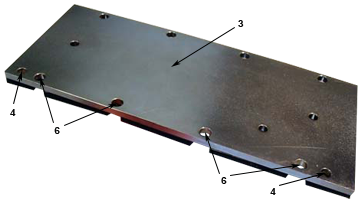

  • Manufacture the positioning holes (2) in the machine bed (1) analogous to the 5 mm positioning holes (4) in the magnetic plate (3).
  • Insert the locating pins (2) into the positioning holes (2) in the machine bed (1).
  • Manufacture the tapped holes (5) analogous to the mounting holes (6) in the magnetic plate (3).

Proceed as follows:

  • Cleanse the locating surface of dust and particles.
  • Mount the magnetic plate on the locating surface of the track.
