Programmierbeispiel

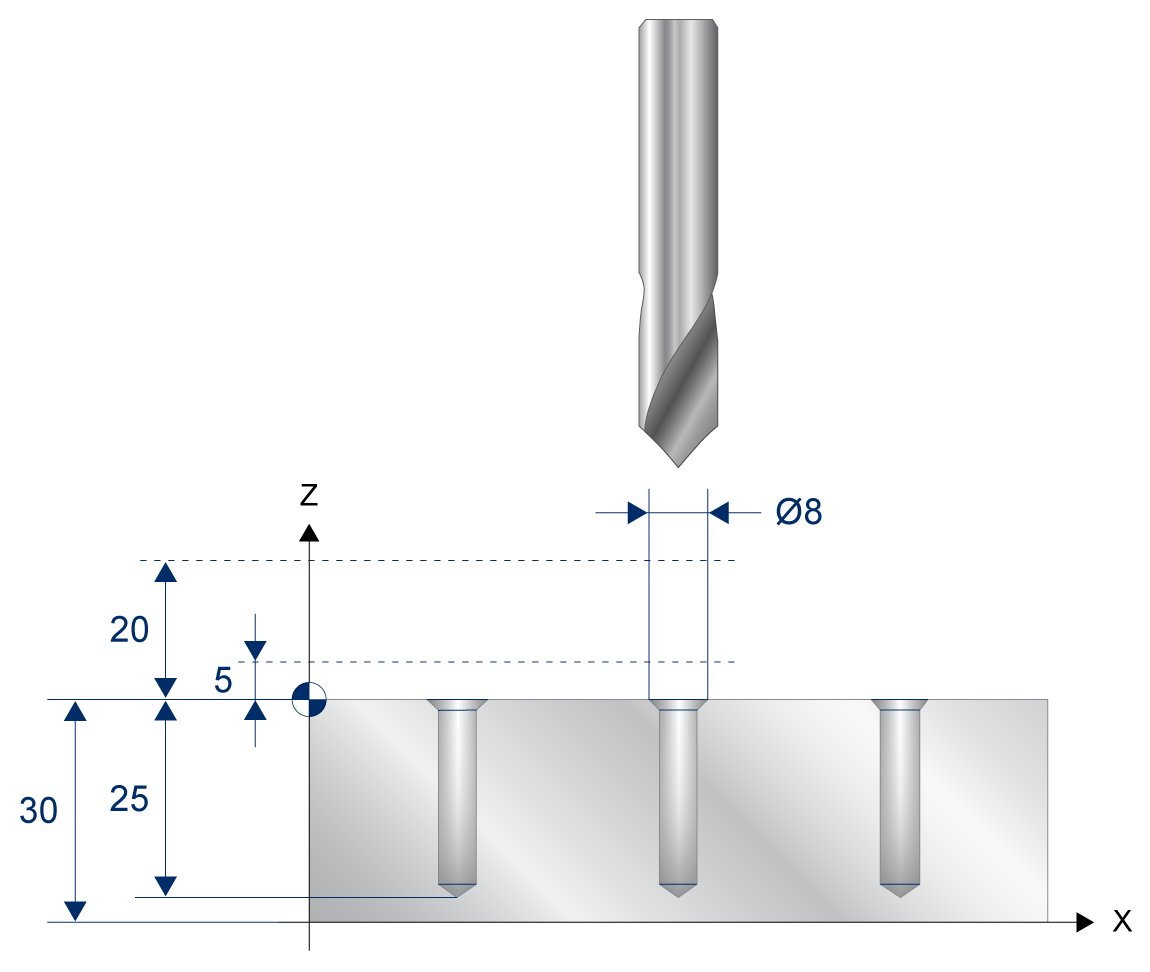

Zentrieren und einfaches Bohren

; Centering

#VAR

; input parameters:

V.L.SurfacePosition = 0 ( Z-Position of workpiece surface )

V.L.RetractionPlane = 20 ( Z-Position of retraction plane )

V.L.SafetyClearance = 5 ( relative value of safety clearance in Z )

V.L.CenterDiameter = 8 ( centering diameter )

V.L.DrillingDepth = 25 ( drilling depth )

#ENDVAR

(------------------------------ Centering -----------------------------)

T1 D1 ( Tool data )

M6 ( Tool change )

G90 G54 F250 M03 S400 ( Technology data )

G00 ZV.L.RetractionPlane ( Go to Z start position )

G00 X20 Y20 ( 1. drilling position )

L CYCLE [NAME=SysDrillCenterHole.ecy \

@P1 = V.L.SurfacePosition \

@P2 = V.L.RetractionPlane \

@P3 = V.L.SafetyClearance \

@P68 = V.L.CenterDiameter \

]

G00 Z200 M5 ( Final position, stop of spindle )

(------------------------------ Drilling ------------------------------)

T2 D2 ( Tool data )
