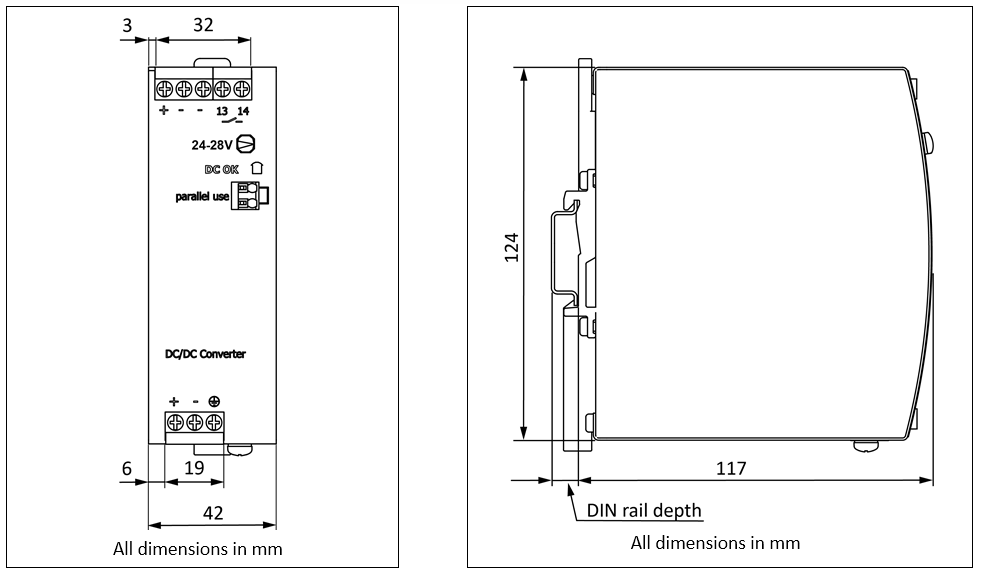

Dimensions and weight

Overall width

42mm

Height

124mm

Depth

117mm
The DIN rail height must be added to the unit depth to calculate the total required installation depth.

DIN rail

Use 35 mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.

Weight

520 g

Housing material

Body: Aluminum alloy
Cover: zinc-plated steel

Installation clearances

See chapter on Safety instructions and installation requirements

Penetration protection

Small parts like screws, nuts, etc. with a diameter larger than 3.5mm
