KL2751-0011 - Application example

WARNING

Risk of injury through electric shock and damage to the device!

Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals!

Supply in of the mains voltage without a power feed terminal

Note

Risk of damage to the device!

The supply in of mains voltage without a power feed terminal is permissible only for dimmer terminals without power contacts:
KL2751-0011, KL2761-0011,
KS2751-0011, KS2761-0011

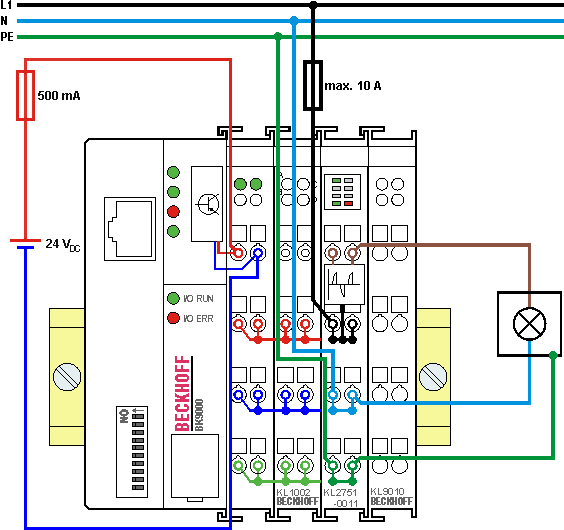

The example shows the control of an incandescent lamp by a KL2751-0011. The mains voltage (230 VAC) is fed directly to the KL2751-0011.

KL2751-0011 - Application example 1:
