EP2816-00xx - Process image

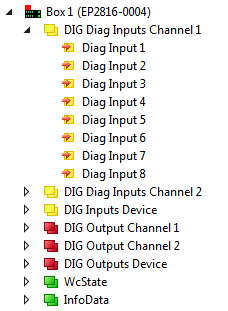

DIG Diag Inputs Channel 1
You will find the diagnostic inputs for the module's first 8 digital outputs under DIG Diag Inputs Channel 1.
Data types DIG Diag Inputs Channel 1 |
Diag Input n
Indicates an error on Output n.
DIG Diag Inputs Channel 2
You will find the diagnostic inputs for the module's second 8 digital outputs under DIG Diag Inputs Channel 2.
Data types DIG Diag Inputs Channel 2 |
Diag Input n
Indicates an error on Output n.
DIG Inputs Device
You will find the module's status inputs under DIG Inputs Device.
Data types DIG Inputs Device |
Safe state active
Indicates whether the safe state has been assumed. The display only works if the network transmits process input data, i.e. in the network states Safe-Operational (Safe-OP) and Operational (OP), but not in the network state INIT.
Error channel X
Indicates an error on channel X.
Sync Error
See EtherCAT system documentation.
TxPDO Toggle
See EtherCAT system documentation.
DIG Outputs Channel 1
You will find the first 8 digital outputs of the module under DIG Outputs Channel 1.
Data types DIG Output Channel 1 |

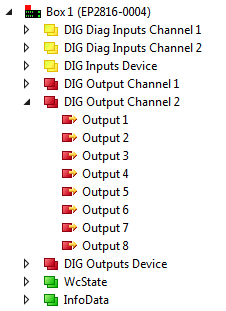

DIG Outputs Channel 2
You will find the second 8 digital outputs of the module under DIG Outputs Channel 2.
Data types DIG Output Channel 2 |
DIG Outputs Device
You will find the module's control outputs under DIG Outputs Device.
Data types DIG Outputs Device |
Set safe state
Sets the module to the safe state.
Reset outputs
Resets the error bits "Error channel X" of the module. The outputs are reactivated.
