EtherCAT plug-in modules of slot 1 and 2

The signal order on the I/O connector is identical to the pin order of the I/O ports on the EtherCAT plug-in modules. Additional power supply pins are added to the I/O connector.

EtherCAT plug-in modules of slot 1 and 2 1:

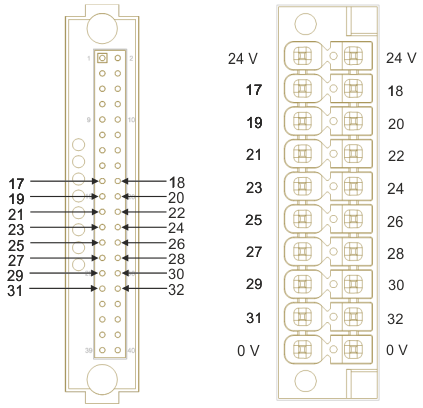

EJ8906-0005 - Pin numbering Slot 1 and 2 (left), Pin numbering of connector 1 and 2 (right)

Note

EtherCAT plug-in modules of slot 1 and 2 2:

Description of the pinout for EtherCAT plug-in modules

For the description of the pinout see chapter “Pinout” in the documentation of the EtherCAT plug-in modules (www.beckhoff.com/EJxxxx).
