LEDs

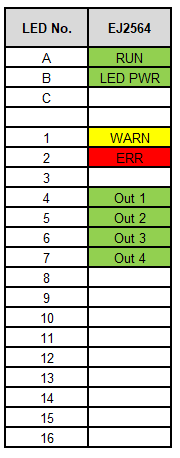

LEDs | ||||
---|---|---|---|---|
LED | Color | Display | State | Description |
RUN | green | off | Init | State of the EtherCAT State Machine: INIT = initialization of the plug-in module |
flashing | Pre - | State of the EtherCAT State Machine: PREOP = function for mailbox communication and different default settings set | ||
single flash | Safe - | State of the EtherCAT State Machine: SAFEOP = verification of the Sync Manager channels and the distributed clocks. | ||
on | Operational | State of the EtherCAT State Machine: OP = normal operating state; mailbox and process data communication is possible | ||
flickering | Bootstrap | State of the EtherCAT State Machine: BOOTSTRAP = function for Firmware updates of the plug-in module | ||
PWR LED | green | on | - | The LED supply voltage is within the permissible range. |
WARN | yellow | yellow | - | Warning |
ERR | red | red | - | Error |
Output 1 … 4 | green | on | - | The LED output is active. |
