Install UPS software

	Handling older UPS software Older UPS software versions may cause errors during installation. First, uninstall the existing UPS software.

This chapter shows you how to install the Beckhoff UPS software on an Industrial PC or a non Beckhoff PC. If an older version of the UPS software is already installed, uninstall it first, since it may not be possible to update all files.

Requirements:

Windows 7 or Windows 10 (32 and 64 Bit).
Installation file available at: http://ftp.beckhoff.com/download/software/embPC-Control/Tools/CU81x0

Proceed as follows:

1. Close all running applications.

2. Start the file Beckhoff_UPSvx.x.x.x.exe to install the UPS software.

3. Select the desired language.

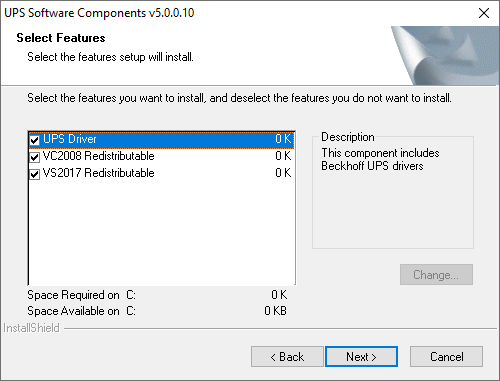

4. Install the UPS driver and confirm with Next.
Install UPS software 2:

Restart the industrial PC after installation to complete the process.
